Siemens Perfect Harmony GH180 Solution

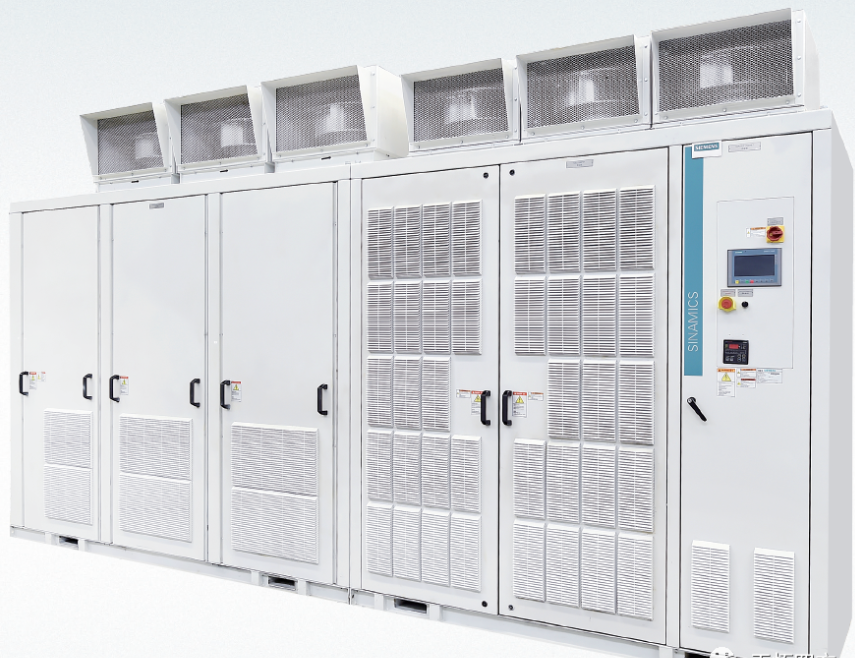

SINAMICS PERFECT HARMONY GH180 solutions introduction

The SINAMICS PERFECT HARMONY GH180 is a series of cells linked together to create the medium voltage power output of the drive system. The design features an integrated transformer and the ability to scale the drive for a wide range of voltage and output power. The drive offers increased availability due to its modular design and ability to bypass any one cell during operation. The quality of the output voltage is so close to perfect sine-wave shape that motors of literally any type – old or new, low-speed or high-speed – can be operated without any additional stress.

Multi-cell voltage source inverter featuring SINAMICS PERFECT HARMONY technology (PH VSI)
Power range
Air cooling: up to 10 MVA
Water cooling: up to 24.4 MVA
Input section

Air cooling: 2Q (DFE)

Water cooling: 2Q (DFE) and w / partial recharge
Output voltage

Air cooling: 2.3 to 11 kV

Water cooling: 4.0 to 11 kV

Cell-based design perfect for highest efficiency and availability

Line-friendly, motor-friendly & load-friendly by eliminating harmonics and stress

Faster project execution thanks to 30 % shorter commissioning times

Extremely service-friendly design for low maintenance and lifecycle costs

Best-in-class MV-drives in size

Compatible with all motor types

For long cable length up to 2300 m

Redundant cooling system and advanced cell-by-pass for unrivaled level of reliability and availability

Operates at 30% input voltage sag continuously Without tripping

Meet IEEE 519-1992 requirements for voltage and current harmonic distortion

Ready for the digital future with extended integrated monitoring

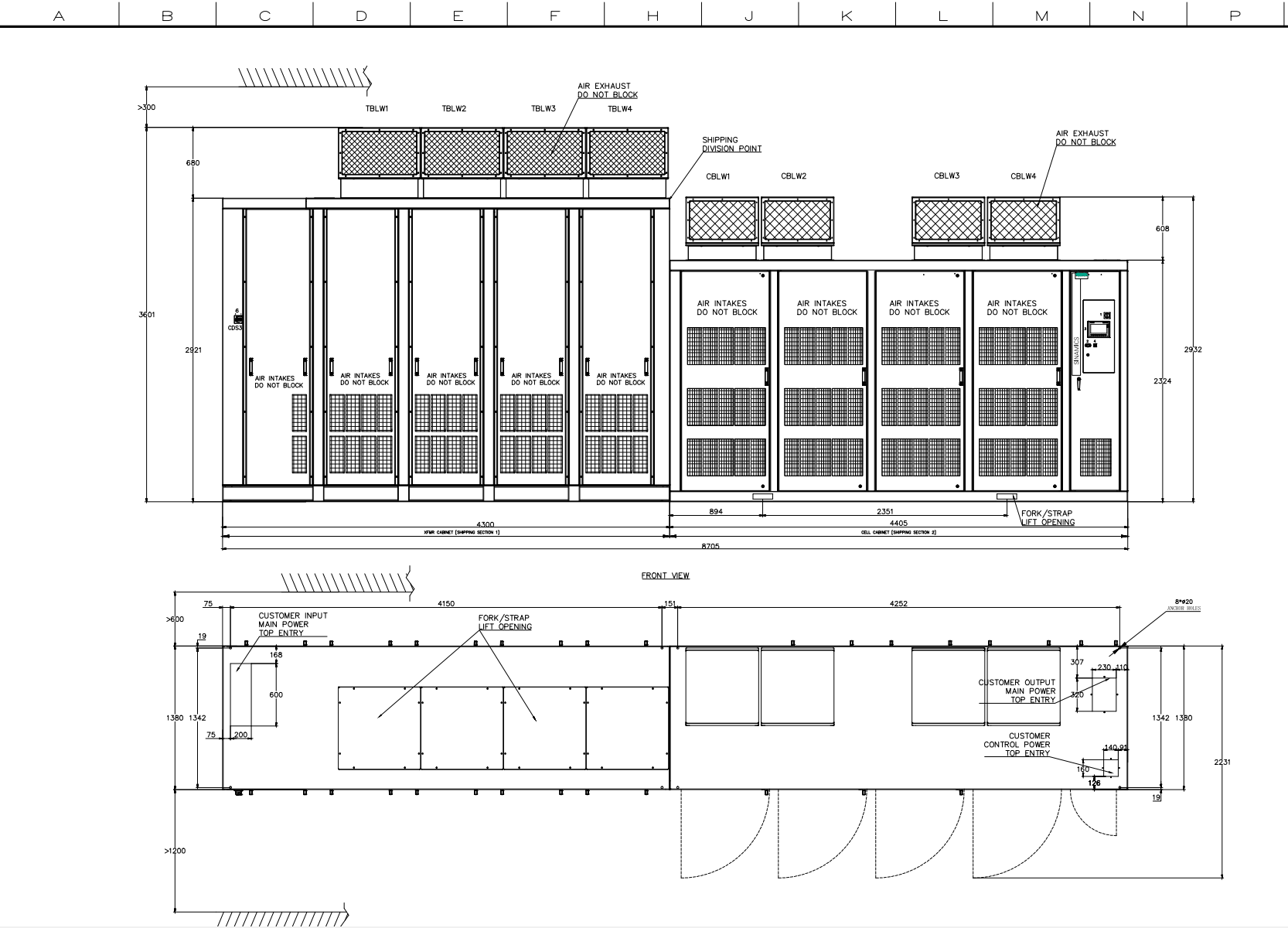

GH180 outline example


Technical data overview

  •  Output voltage range

     2.3 to 11 kV

     Power range

     Power range: 0.12 to 24.4 MVA (150 HP to 28000 HP)

     Cooling

     Air-cooled drives up to 10 MW
    Water-cooled drives up to 24 MW

     Max. output frequency

     330 Hz standard

     Open / closed loop control

     - Sensor less vector control (optionally with sensor)
    - Communication with all current BUS systems
    - Automatic motor identification
    - Automatic start-up

     Degree of protection

     IP21 or higher, air cooling; IP31 (excluding blower cage)
    IP43 or IP54 water cooling

     Rules and standards

     ANSI, NEMA, UL, CSA, CE, UKCA

  • Application case - China

  • "We should promote the construction of a beautiful China, adhere to the integrated protection and systematic governance of mountains, rivers, forests, fields, lakes, grass and sand, coordinate industrial restructuring, pollution control, ecological protection, and respond to climate change, coordinate carbon reduction, pollution reduction, green expansion, and growth, and promote ecological priority, conservation and intensive, green and low-carbon development“
  • More and more iron and steel plants are actively practicing the business philosophy of green manufacturing plants, and creating a green development road with their own characteristics.

    Siemens and a metallurgical equipment manufacturer assisted the flue gas treatment project of a steel plant by providing key frequency conversion drive equipment in its core equipment, dust removal fan. The reliability requirements that the annual average operation time of the dedusting fan is not less than 300 days and the annual downtime is less than 100 hours are guaranteed.

    From the beginning of the project, together with Siemens, we have provided customers with a professional GH180 perfect harmony solution. The proprietary neutral point offset patent technology provided by Siemens GH180 products and the market share of nearly 10000 domestic equipment have effectively verified its higher reliability and availability.

    This leading metallurgical equipment manufacturing enterprise has been committed to the research and development of new technologies and processes for industrial flue gas pollution control and the introduction and transformation of international advanced environmental protection scientific and technological achievements. The self-developed pure dry desulfurization, denitration and dedusting integrated clean emission technology and low-temperature denitration technology have the technical performance of "flue gas conditioning, desulfurization, fluoride removal, dedusting, low-temperature denitration" integration. The chimney exhaust has no smoke tail and does not require chimney anti-corrosion No desulfurization wastewater, no secondary pollution of aerosol and stable operation have established its leading position in the field of flue gas treatment. Its dedusting fan is the core equipment to realize the low-temperature denitration technology in the whole process link, which is critical to the whole process control.

    Comprehensive advantages of Siemens SINAMICS GH180 series inverter:
    -Improve productivity
    -Lower maintenance and operation costs
    -Outstanding reliability
    -Precise process control
    -Intuitive man-machine interface

    SINAMICS perfect harmony GH180 frequency converter is applied in various industrial industries such as electric power, petroleum, chemical industry, mining, metallurgy and municipal administration. Tiantuo Sifang helps customers significantly improve productivity, enhance energy utilization and reduce operating costs. This makes it the first choice for frequency conversion applications with high reliability, high precision and long service life.

    We have cooperated with Siemens for nearly 20 years to provide customers with the integration service of the underlying control system based on Siemens' automation and transmission products and the implementation service of Siemens' MOM/PLM/TECNOMATIX/NX and other industrial software. In recent years, we have continued to deepen and expand our cooperation in combination with Siemens' digital strategy. For more information about Siemens software and hardware products
