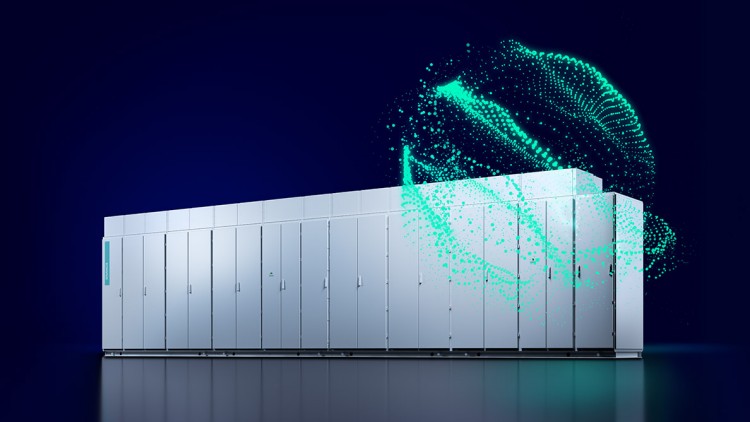

Siemens Medium Voltage Converter SH150

SINAMICS SH150 for special requirements

Premium converter system for special drive and grid applications featuring M2C active front end for complex 2Q and 4Q requirements
SINAMICS SH150 medium voltage converters are designed for applications with special or complex requirements. All of the system versions and functions allow for numerous product specific solutions tailored to your applications' needs. The power units come from SINAMICS PERFECT HARMONY GH150 and the predecessor SINAMICS SM120 CM due to the proven advantages of those product lines.

Benefits at a glance
1- Extremely motor- and line-friendly: Motors of literally any type – old or new – can be operated with standard winding insulation without additional stress. Transformer-less connection to local grids on request.
2- Active Front End (AFE) for grid applications: Dedicated U/f droop control to create an island grid or to co-supply together with other generators. Additionally supply dynamic reactive power for voltage stabilization (STATCOM).
3- Active Front End (AFE) for regenerating motors: Simultaneous 2Q or 4Q operation and grid VAR compensation with AFE and motor-side inverter. Also for rotating generators.

4- Robust & reliable: Cell redundancy with automatic cell bypass for increased availability. Marine classification for ship and offshore applications.

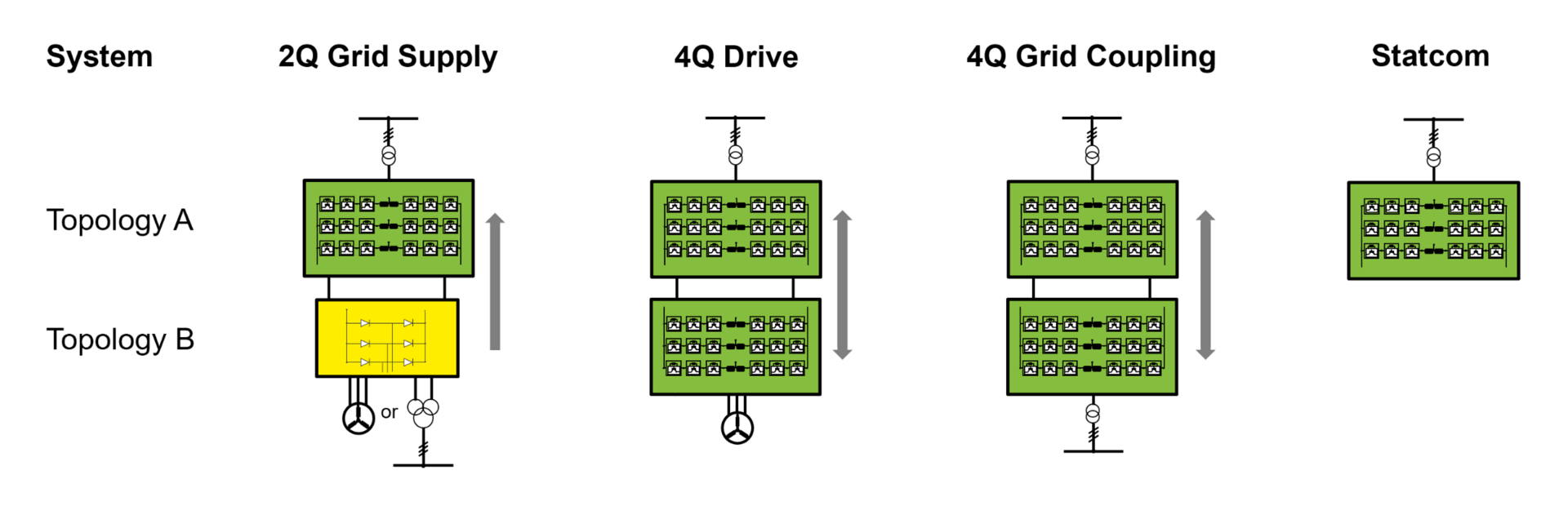

Technical data overview

System

2Q Grid Supply

4Q Drive

4Q Coupling *)

STATCOM *)

Industries

Marine, Energy, Industrial Grid

Test Equipment, Offshore Drive

Offshore, Energy, Industrial Grid

Minerals, Industrial Grid

Applications

Ship Shaft Generator, Power from Shore, 50/60 Hz Conversion

Regenerating. Test Stand, Transf.-less Drive, Drive + VAR compensation

Bidirectional Coupling, 50/60 Hz Conversion with VAR compensation

VAR compensator

Voltage

3.3 - 11 kV

3.3 - 11 kV

3.3 - 11 kV

3.0 - 10 kV

Type rating

4 - 32 MVA

4 - 32 MVA

4 - 32 MVA

3 - 32 MVAr

Topology A

Control **)

M2C Active Front End
U/f droop control

M2C Active Front End
AFE control

M2C Active Front End
U/f droop control

M2C Active Front End
U/f droop control

Topology B

Control **)

Diode Rectifier
12-, 24-, 36-pulse

M2C Motor Module
Vector control

M2C Active Front End
AFE control

–

–

Order Number

6SL3805-xA...

6SL3805-5B...

6SL3805-5C...

6SL3805-5D...

*) on request
**) without grid code certification
