Siemens V90 servo

Description

SINAMICS V90

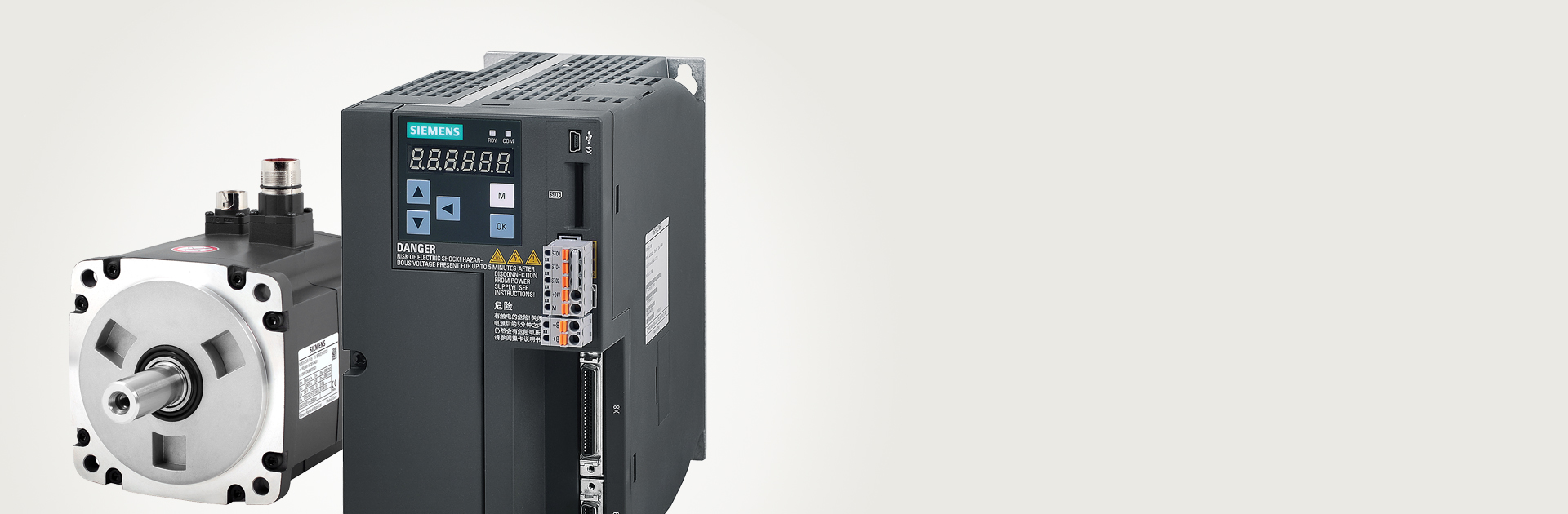

The drive system comprises the SINAMICS V90 servo converter and the SIMOTICS S-1FL6 servo motor. The system features eight converter frame sizes and seven motor shaft heights to cover a power range of 0.05 to 7.0 kW for operation in single-phase and three-phase networks. It can be integrated easily via PTI, PROFINET, USS or Modbus RTU. The SINAMICS V90 servo drive system enables a host of simple motion control tasks to be implemented cost-efficiently and conveniently with the focus being on dynamic motion and processing.

Highlights

SINAMICS V90 - The optimized servo drive solution for motion control applications

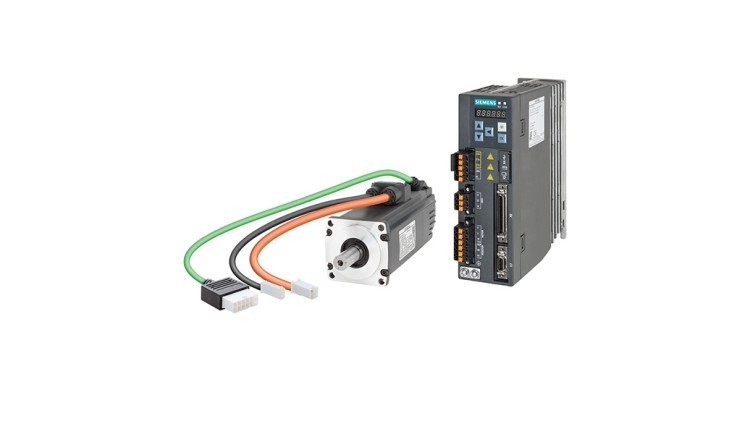

The servo drive system comprises the SINAMICS V90 servo converter and the SIMOTICS S-1FL6 servo motor. For operation in single-phase and three-phase networks, diverse converter frame sizes and motor shaft heights cover a wide range of applications with the focus on dynamic motion and processing – for example positioning, conveying and winding.

Overview of strengths Simple. Precise. System-based.

With the compact SINAMICS V90 frequency converter, Siemens offers solutions for simple and more highly dynamic applications. The compact devices are suitable for industrial applications, for example in electronic assembly machines, the printing and packaging industries, and for material handling machines.

Simple

One-button tuning and real-time auto-tuning

The control loop parameters are optimized automatically. One Button Tuning can be used during commissioning of the system.

Precise

Sufficient encoder resolution and high data transfer rates

Due to fast data transfer and with a resolution of up to 21 bits for the encoder

System-based

Optimized system performance

Rapid acceleration and braking, with smooth operation in order to ensure high machine productivity

Find the appropriate servo motor for your application

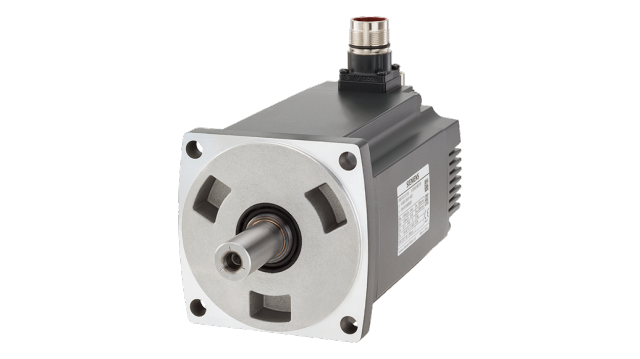

SIMOTICS S-1FL6 servo motors are permanent-magnet-excited synchronous motors and are designed for operation without external cooling. The heat is dissipated through the surface of the motor. The quick-release connectors facilitate fast and easy installation of the motors. The motors are capable of a threefold overload and can be combined with the SINAMICS V90 frequency converters to create an efficient servo system with high functionality.
