Siemens G130, G150

Description

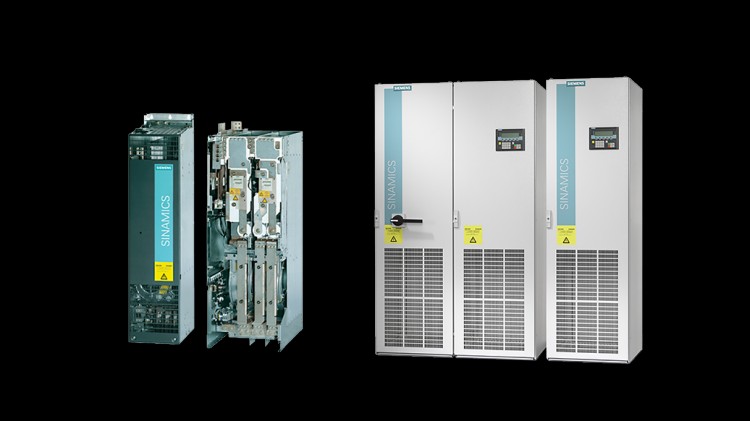

Chassis-, and Cabinet Units SINAMICS G130 / G150, The universal converter for high power ratings

SINAMICS G130 chassis units and SINAMICS G150 cabinet units have been designed for variable-speed drives in machine building and plant construction. They have been specially tuned to the requirements of drives with quadratic or constant load characteristics with medium performance requirements without regenerative feedback. The control accuracy of the sensorless vector control is suitable for most applications, and additional actual speed value encoders are therefore superfluous. SINAMICS G130/G150 offer an economical drive solution which can be matched to the respective customer requirements by a wide range of components and options.

Flexible
Wide array of I/O expansion
modules and further extensions
Wide range of input and output power options
Compliant with IEC & NEMA standards
Product available in three different voltage levels

User friendly
Easy to use AOP30 operator panel for simple parameter setting and operation monitoring
Intuitive wizard-based software as alternative for commissioning and parameter setting
Easy and efficient system engineering via TIA portal
Optimal accessibility of all modules for best service experience

Reliable
Robust and well proven system design and behavior
Highest availability due to dedicated power block design
Suitable for heavy duty operations
Supports emergency operation via "Essential Service Mode"

Ready for Digitalisation
SINAMICS DriveSim Basic -easy-to-use drive models for your simulation
Simplify planning and installation process of drives with CAE/CAD data (EPLAN, 3D)
Enable long-term monitoring in MindSphere, with the Analyze MyDrives application
Easy access to technical data via data matrix code on each product.
