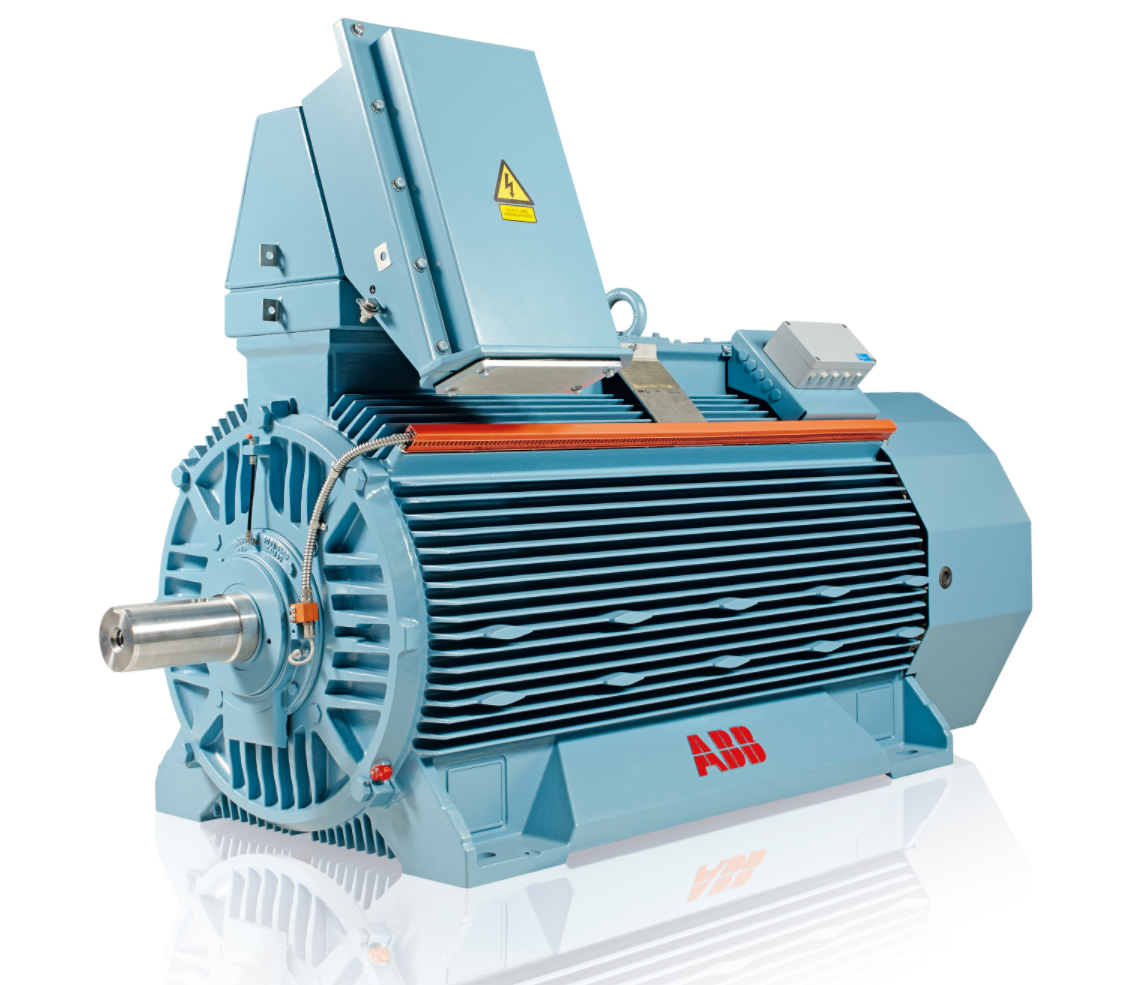

ABB NXR motor

Description

NXR universal cast iron three-phase asynchronous high voltage induction motor
Power range: 0.37kw - 100-1800kw

Introduction of NXR series

NXR cast iron motor is a compact high-voltage motor with external reinforcement cooling, and the maximum power can reach 1800kW Nxr is applicable to the needs of different applications in electric power, water and sewage treatment, mining, port, petrochemical, papermaking, iron and steel, metallurgy, transportation and other industries. It can drive mechanical equipment operating in safe areas, including pumps, fans, compressors, belt conveyors, paper machines, rolling mills and so on.

Product advantages

● compact base design, light weight and easy installation
● optimized circulating air circuit design, heat dissipation rib structure, high life cycle
● flexible junction box guide rail design provides multiple possibilities for changing the position of junction box on site
● energy efficient electrical design scheme and efficient operation cost
● up to IP66 protection grade, easy dustproof and waterproof
● standard type selection catalogue, standardized design, convenient type selection and fast delivery of drawings and products.
Main specification

● standard: IEC
● power range: 100-1800kw
● base No.: 315-500mm
● number of poles: 2-12p (> = 8p, applicable to above 400mm)
● voltage: up to 11kv
● insulation temperature rise grade: F / b
● installation method: B3 / B35
● cooling mode: ic411 / ic416
● protection grade: ip55-ip66
● national energy efficiency: GBI
● vibration level: ISO class A
● safe area and land
● origin: China, Finland
